Side channel blower WDH-SV58

Our price: EUR 1249.00
including MwSt


  • Product details
    Water damage restoration? Insulation drying? Screed drying? Cavity drying?

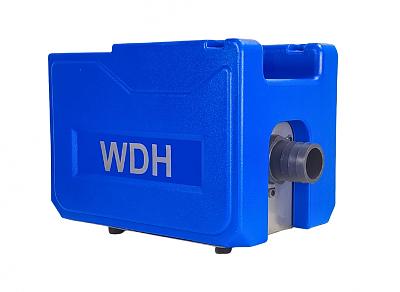

    Side channel blower WDH-SV58
    with a powerful 5,800 Pa air pressure output
    Only EUR 1.249,00incl. MwSt/VAT and excl. Shipping freight

    The WDH-SV58 side channel blower from Aktobis AG is the powerful answer to moisture damage in floor coverings, walls and ceilings. Specially developed for non-destructive construction drying, the device enables highly efficient restoration of water-damaged structures. Thanks to the minimally invasive method, costly demolition work on screed or tiles is a thing of the past.

    The centrepiece of the WDH-SV58 is its technical versatility: thanks to modern dual-pressure technology, the system is capable of both vacuum extraction (extraction) and air injection (overpressure). During injection, dry air is actively pressed into cavities, while extraction ensures the continuous extraction of moisture-saturated air through targeted negative pressure. This highly efficient air exchange drastically accelerates drying and prevents dangerous mould growth from the outset.

    Note:
    To achieve optimum results and prevent moisture from flowing back into the floor, the side channel blower should always be used indoors in conjunction with a drip tray and a building dryer or dehumidifier. This ensures that escaping water droplets and condensed moisture are bound directly. Use the following link to our building dryers & dehumidifiers

    Important:
    The WDH-SV58 side channel compressor must not be used to extract liquids, as this will damage the motor. Ensure that all liquid water has been completely removed before using the side channel compressor.

    The recommended retail price (RRP) is EUR 1.599,00
    Capabilities:
    • Maximum substance protection: Efficient drying using non-invasive or minimally invasive methods - prevents costly chiselling of tiles and screed.
    • Dual system: Can both suck (vacuum) and blow (injection).
    • Powerful: High air circulation of 226 m³/h at 5,800 Pa pressure.
    • Lightweight & mobile: Only 4.5 kg light - ideal for mobile use.
    • Intuitive operation: Simple on/off switch and clearly structured hose connections.
    • High safety standard: IP42 protection rating protects the interior from fine foreign bodies and dripping water.
    • Space-saving design: Compact dimensions (36 x 25 x 26 cm).
    Awards and Certifications:
    • Naturally with CE (LVD) conformity and EMC conformity
    Usage:
    • Water damage restoration & insulation layers: Professional solution for drying screeds, insulation layers and inaccessible cavities after burst pipes or flooding.
    • Non-invasive construction drying: Targeted moisture extraction without costly chiselling of tiles or floor coverings.
    • Cavity & shaft ventilation: Ideal for ventilating supply shafts, suspended ceilings, drywalls and other hard-to-reach areas.
    • Interior construction & renovation: Acceleration of drying processes before painting or installation work to ensure that tight schedules are adhered to in new buildings.
    • Moisture control in recesses: Targeted airflow for drying moisture under built-in furniture, kitchen units or behind panelling.
    Technical details:
    Model:WDH-SV58
    Voltage:220-240V / 50Hz
    Air circulation UNIT:320 W (2.54 A)
    Air pressure performance:5.800 Pa
    Max. Air Flow:226 m3/h
    Air duct diameter:Approx. 39 mm
    Max. Speed:10.800 rpm.
    Max Noise:88 dB/A
    Protection Class:IP42 (protection against foreign bodies > 1 mm and dripping water in case of inclination)
    Color:Blue
    Dimension (H/W/D):36 x 25 x 26 cm
    Weight:4.5 kg
    Scope of delivery:1x side channel blower, 1x operating instructions
    Others:

    If you are interested in another turbo fan or blower, please use the following link: Fans & Blowers

    WDH® stands for solid craftsmanship and professional standards - a brand that comes to you primarily through specialised dealers. Our fans and blowers are renowned in the industry for their reliability and first-class performance. You can rely on our appliances when it comes to durability, precise performance, "GS" tested safety, CE conformity and the use of recyclable materials.

    We not only offer outstanding products, but also first-class customer service that goes far beyond the warranty. Orders are dispatched every working day so that you can use your product as quickly as possible.

    Shipping costs per product to Germany:
    We will use a parcel service to make sure the product reaches you fast and in good shape!
    Germany:EUR 6,90
    Shipping costs per product to other EU countries and Switzerland:
    We will use an International parcel service to make sure the product reaches you fast and in good shape!
    Austria:EUR 15,90
    BeNeLux:   EUR 15,90
    Switzerland:   EUR 30,26
    Rest EU*:  EUR 15,90
    *without outer islands!
    Please use the "Shipping Cost" Tab for other countries

    Details
    SKU WDH-SV58
    EAN 4260196712149
    Manufacturer Aktobis AG, Borsigstr. 20, 63110 Rodgau / Germany, +49 6106 284230, [email protected]
    Weight 4,68 kg
    Shipping Company UPS

    Market price:

    EUR 1599.00
    Our price: EUR 1249.00
    including MwSt



  • Downloads
  • More Images

    Product Detail Pictures

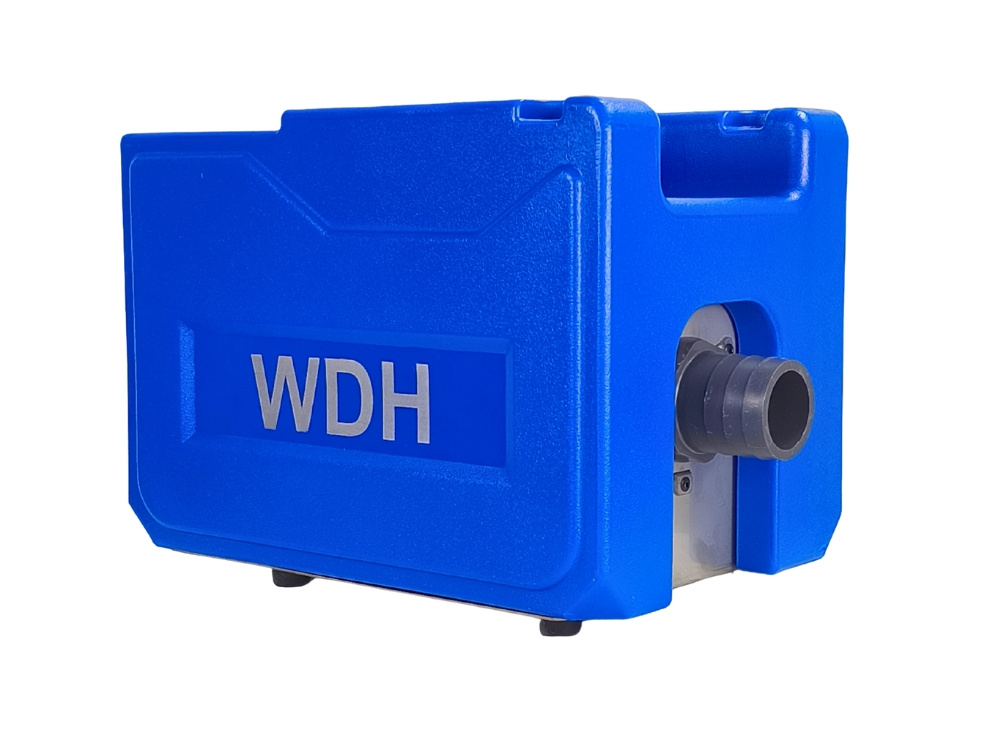

    Seitenkanalverdichter WDH-SV58_MAIN

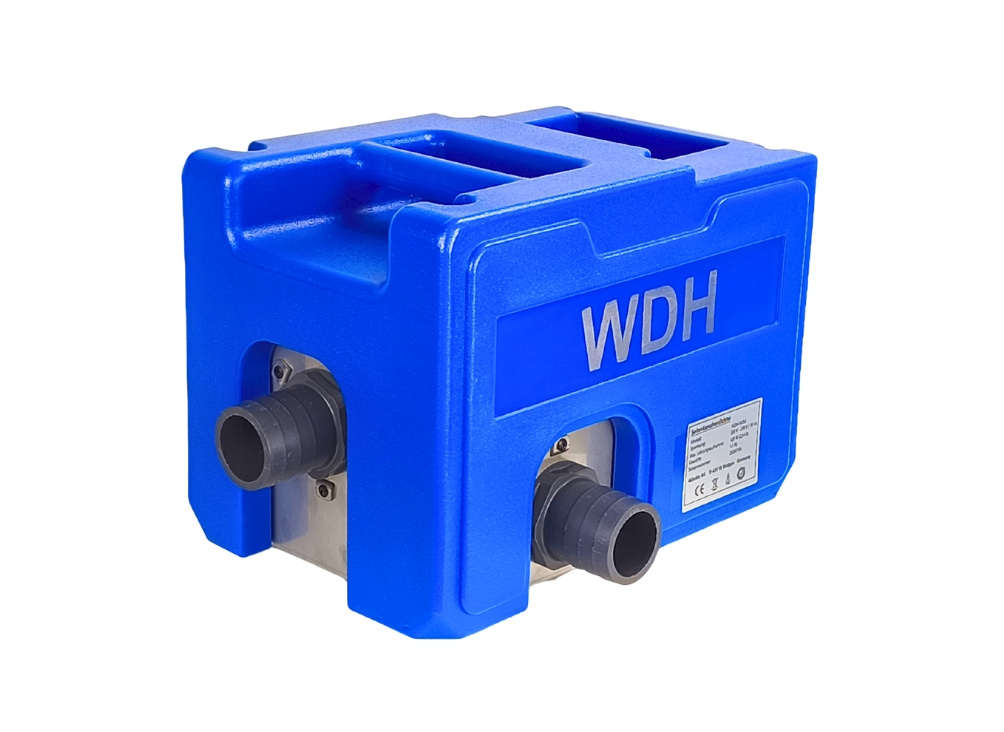

    Seitenkanalverdichter WDH-SV58_SIDE

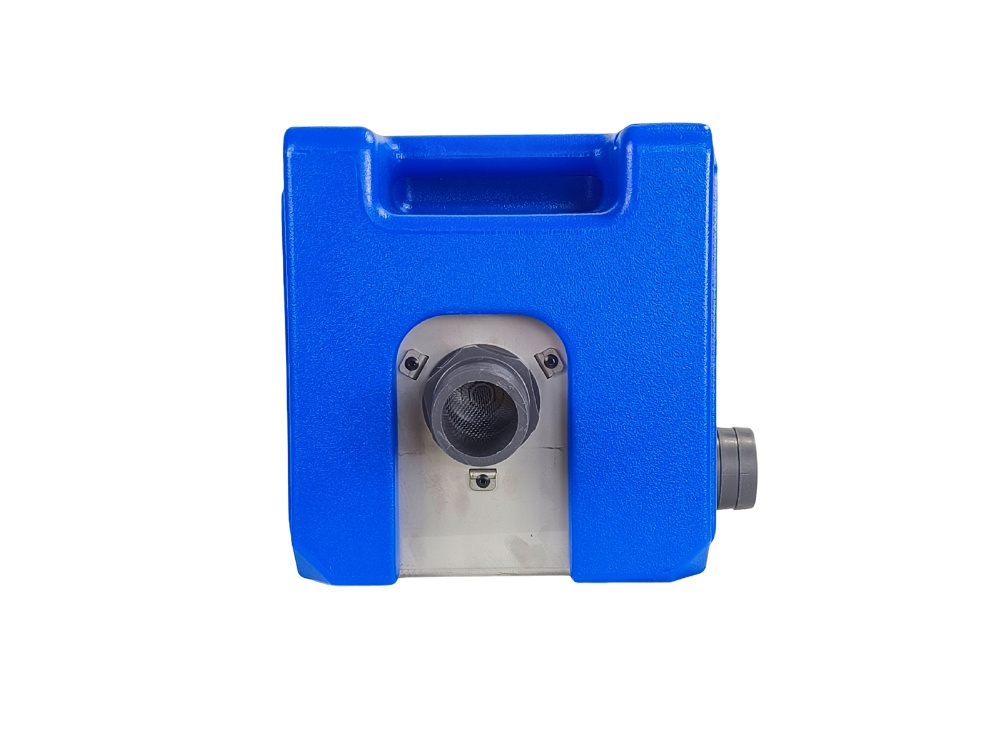

    Seitenkanalverdichter WDH-SV58_FRONT

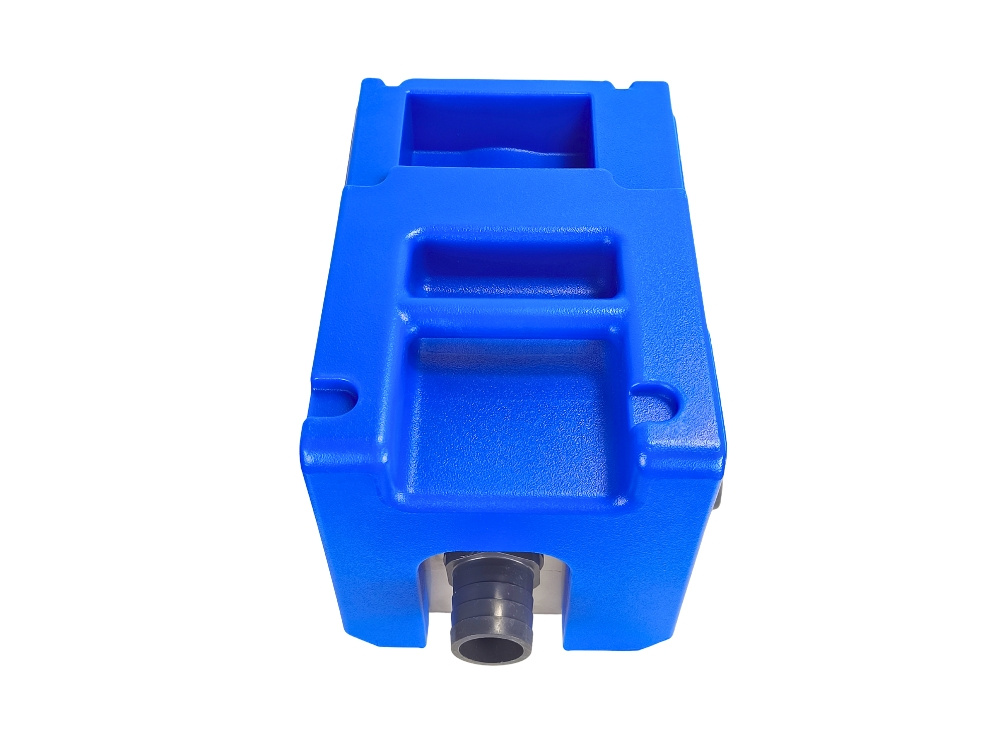

    Seitenkanalverdichter WDH-SV58_TOP

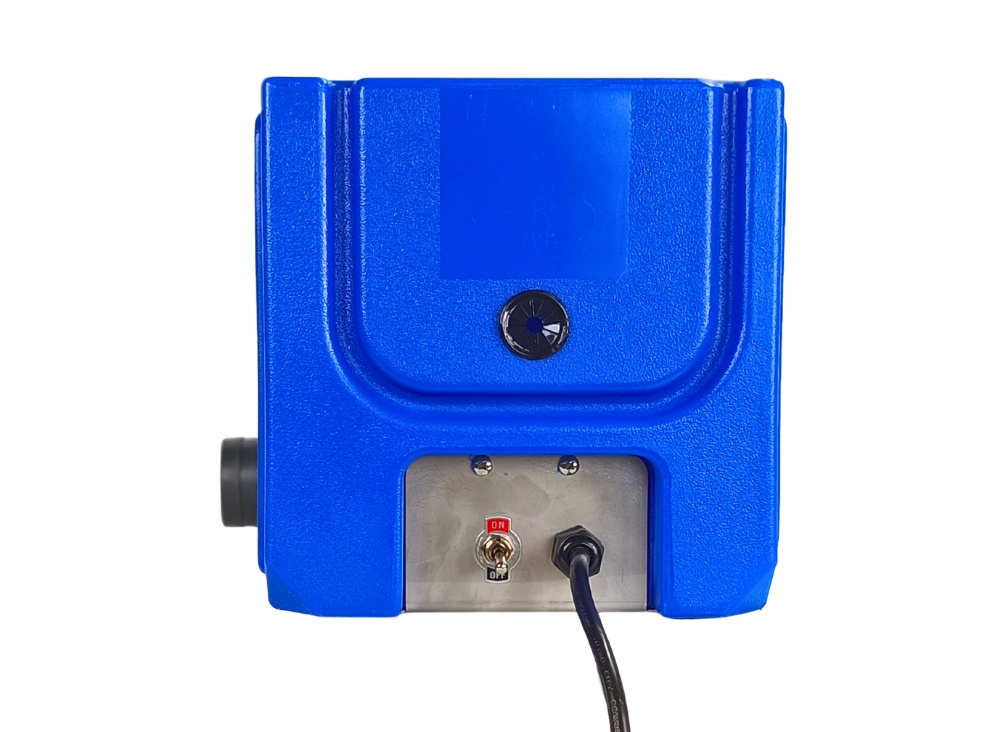

    Seitenkanalverdichter WDH-SV58_BACK

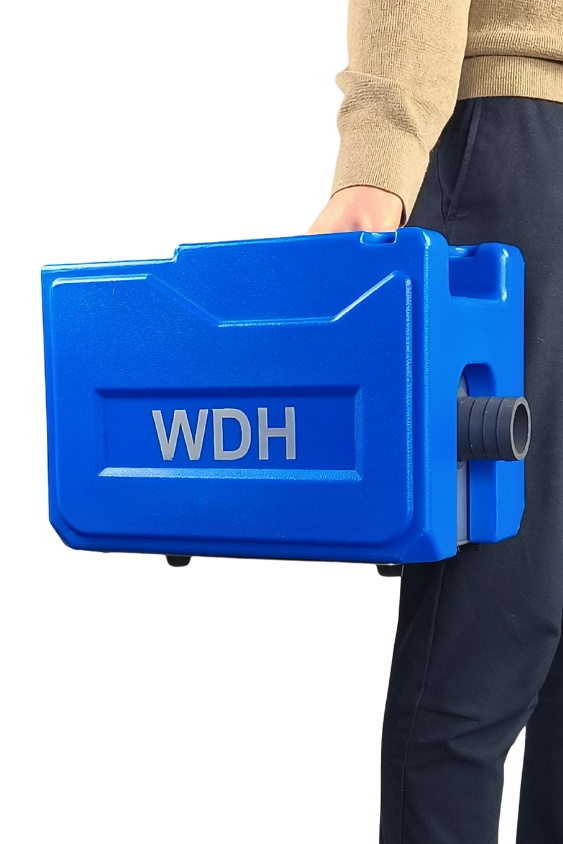

    Seitenkanalverdichter WDH-SV58_HOLD
