Side channel blower WDH-SV58 + starter set

Our price: EUR 1449.00 In Stock
including MwSt

Quantity Price*
2-4 Items 1.376,55
5+ Items 1.333,08
including MwSt

  • Product details
    Water damage restoration? Insulation drying? Screed drying? Cavity drying?
    Side channel blower WDH-SV58 + starter set
    incl. flexible starter set: ready for immediate use and customisable!
    Only EUR 1.449,00incl. MwSt/VAT and excl. Shipping freight

    The WDH-SV58 side channel blower from Aktobis AG is your powerful answer to moisture damage in floor coverings, walls and ceilings. Specially developed for non-invasive or minimally invasive drying, this device enables highly efficient restoration of water-damaged structures without the need for costly demolition work on screed or tiles.

    The centrepiece of the WDH-SV58 is its versatility: thanks to modern dual-pressure technology, the system is capable of both vacuum extraction (extraction) and air injection (overpressure). While dry air is actively pressed into cavities during injection, extraction ensures the continuous extraction of moisture-saturated air from the cavities through targeted negative pressure. In this context, we recommend always using the side channel blower in conjunction with a drip tray and a dehumidifier or construction dryer so that the water droplets and condensed moisture do not re-enter the floor.

    This drastically speeds up the drying process and protects the building fabric from consequential damage such as mould growth in the long term.

    We supply the WDH-SV58 directly with a modular starter set so that you can start drying immediately. This system follows the modular principle: suction mats, hoses and various connection pieces can be flexibly combined and adapted precisely to the shape of the damage. Whether large-area floor drying or targeted cavity extraction - the system grows with your requirements and can be expanded in stages at any time.

    Important:
    The WDH-SV58 side channel compressor must not be used to extract liquids, as this will damage the motor. Ensure that all liquid water has been completely removed before using the side channel compressor.

    The recommended retail price (RRP) is EUR 1.799,00
    Capabilities:
    • Maximum substance protection: Efficient drying using non-invasive or minimally invasive methods - prevents costly chiselling of tiles and screed.
    • Dual system: Can both suck (vacuum) and blow (injection).
    • Powerful: High air circulation of 226 m³/h at 5,800 Pa pressure.
    • Lightweight & mobile: Only 4.5 kg light - ideal for mobile use.
    • Complete set: Including suction mats, hoses and connectors.
    • Intuitive operation: Simple on/off switch and clearly structured hose connections.
    • High safety standard: IP42 protection rating protects the interior from fine foreign bodies and dripping water.
    • Space-saving design: Thanks to the compact dimensions (36 x 25 x 26 cm).
    Awards and Certifications:
    • Naturally with CE (LVD) conformity and EMC conformity
    Usage:
    • Water damage restoration & insulation layers: Professional solution for drying screeds, insulation layers and inaccessible cavities after burst pipes or flooding.
    • Non-invasive construction drying: Targeted moisture extraction without costly chiselling of tiles or floor coverings.
    • Cavity & shaft ventilation: Ideal for ventilating supply shafts, suspended ceilings, drywalls and other hard-to-reach areas.
    • Interior construction & renovation: Acceleration of drying processes before painting or installation work to ensure tight schedules are adhered to in new buildings.
    • Moisture control in recesses: Targeted airflow for drying moisture under built-in furniture, kitchen units or behind panelling.
    Technical details:
    Model:WDH-SV58 + Starter Set
    Voltage:220-240V / 50Hz
    Air circulation UNIT:320 W (2.54 A)
    Air pressure performance:5.800 Pa
    Max. Air Flow:226 m³/h
    Air duct diameter:Approx. 39 mm
    Max. Speed:10.800 rpm.
    Max Noise:88 dB/A
    Protection Class:IP42 (protection against foreign bodies > 1 mm and dripping water in case of inclination)
    Color:Blue
    Dimension (H/W/D):Side channel blower: 36 x 25 x 26 cm | Suction mat: 0.5 x 55.5 x 75.5 cm | Air hose: 4.7 x 4.7 x 4.7 cm | Connection piece: 10.2 x 5.5 x 5.5 cm | T-connector: 10 x 14.5 x 4.5 cm
    Weight:4,5 kg
    Scope of delivery:1x side channel blower, 2x suction mat, 3x air hose, 6x connection piece, 1x T-piece, 1x operating instructions
    Others:

    If you are interested in another turbo fan or blower, please use the following link: Fans & Blowers

    WDH® stands for solid craftsmanship and professional standards - a brand that comes to you primarily through specialised dealers. Our fans and blowers are renowned in the industry for their reliability and first-class performance. You can rely on our appliances when it comes to durability, precise performance, "GS" tested safety, CE conformity and the use of recyclable materials.

    We not only offer outstanding products, but also first-class customer service that goes far beyond the warranty. Orders are dispatched every working day so that you can use your product as quickly as possible.

    Shipping costs per product to Germany:
    We will use a parcel service to make sure the product reaches you fast and in good shape!
    Germany:EUR 9,90
    Shipping costs per product to other EU countries and Switzerland:
    We will use an International parcel service to make sure the product reaches you fast and in good shape!
    Austria:EUR 20,90
    BeNeLux:   EUR 20,90
    Switzerland:   EUR 54,90
    Rest EU*:  EUR 25,00
    *without outer islands!
    Please use the "Shipping Cost" Tab for other countries

    Details
    SKU WDH-SV58+Starter Set
    EAN 4260196720038
    Manufacturer Aktobis AG, Borsigstr. 20, 63110 Rodgau / Germany, +49 6106 284230, [email protected]
    Weight 17,00 kg
    Shipping Company UPS

    Market price:

    EUR 1799.00
    Our price: EUR 1449.00 In Stock
    including MwSt

    Quantity Price*
    2-4 Items 1.376,55
    5+ Items 1.333,08
    including MwSt


  • Downloads
  • More Images

    Product Detail Pictures

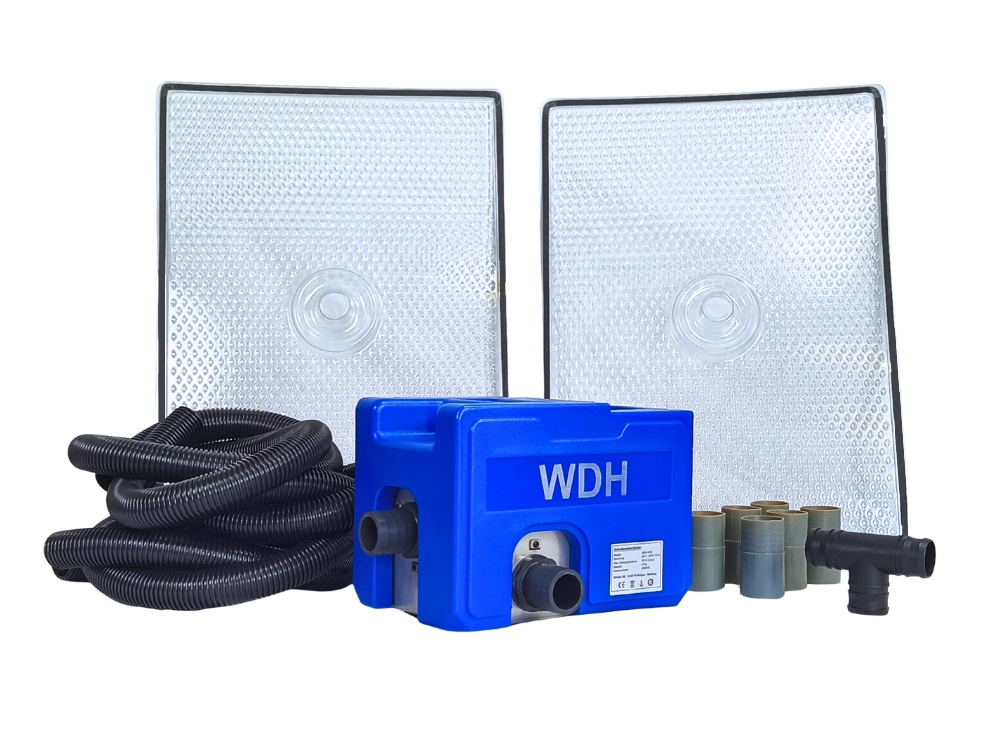

    Seitenkanalverdichter WDH-SV58+Starter Set

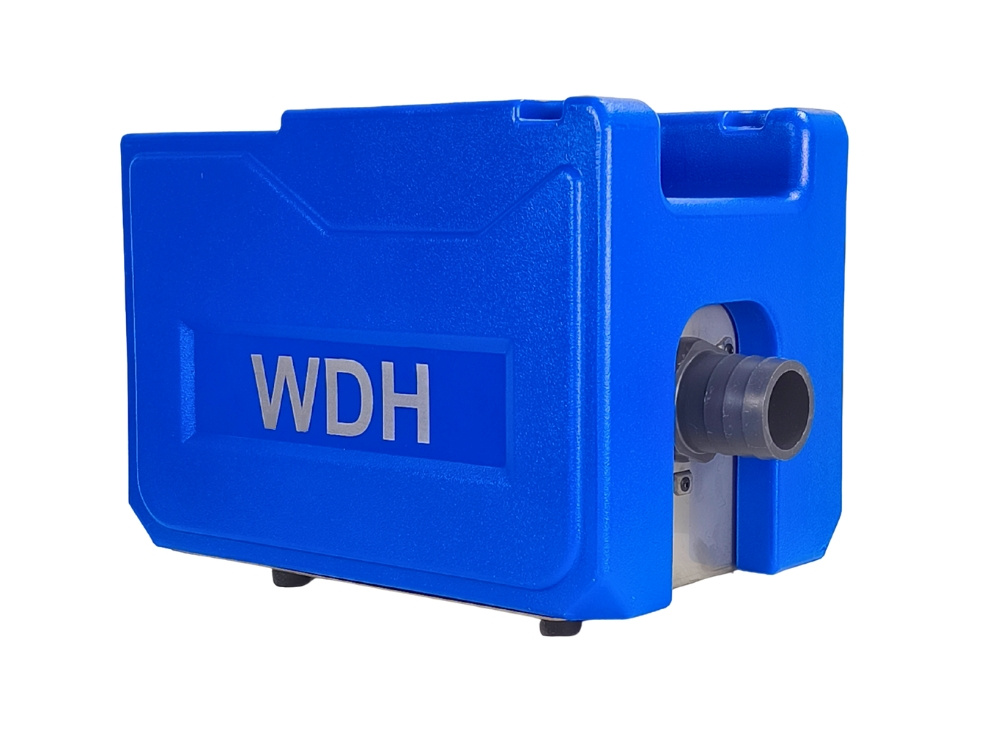

    Seitenkanalverdichter WDH-SV58_MAIN

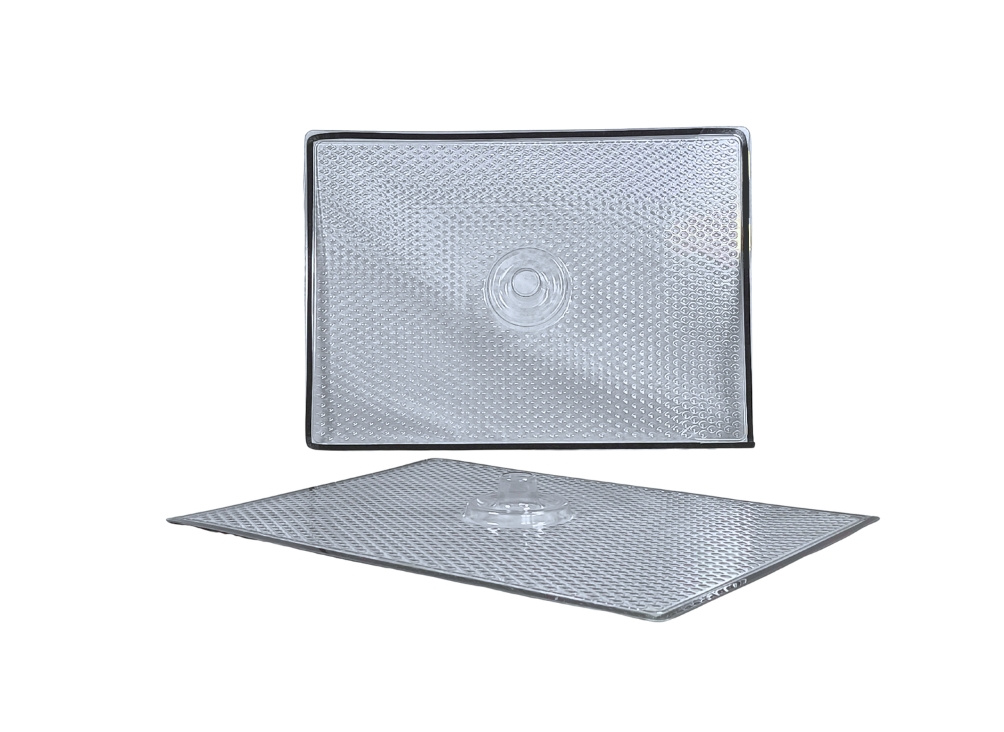

    Saugmatten Seitenkanalverdichter WDH-SV58

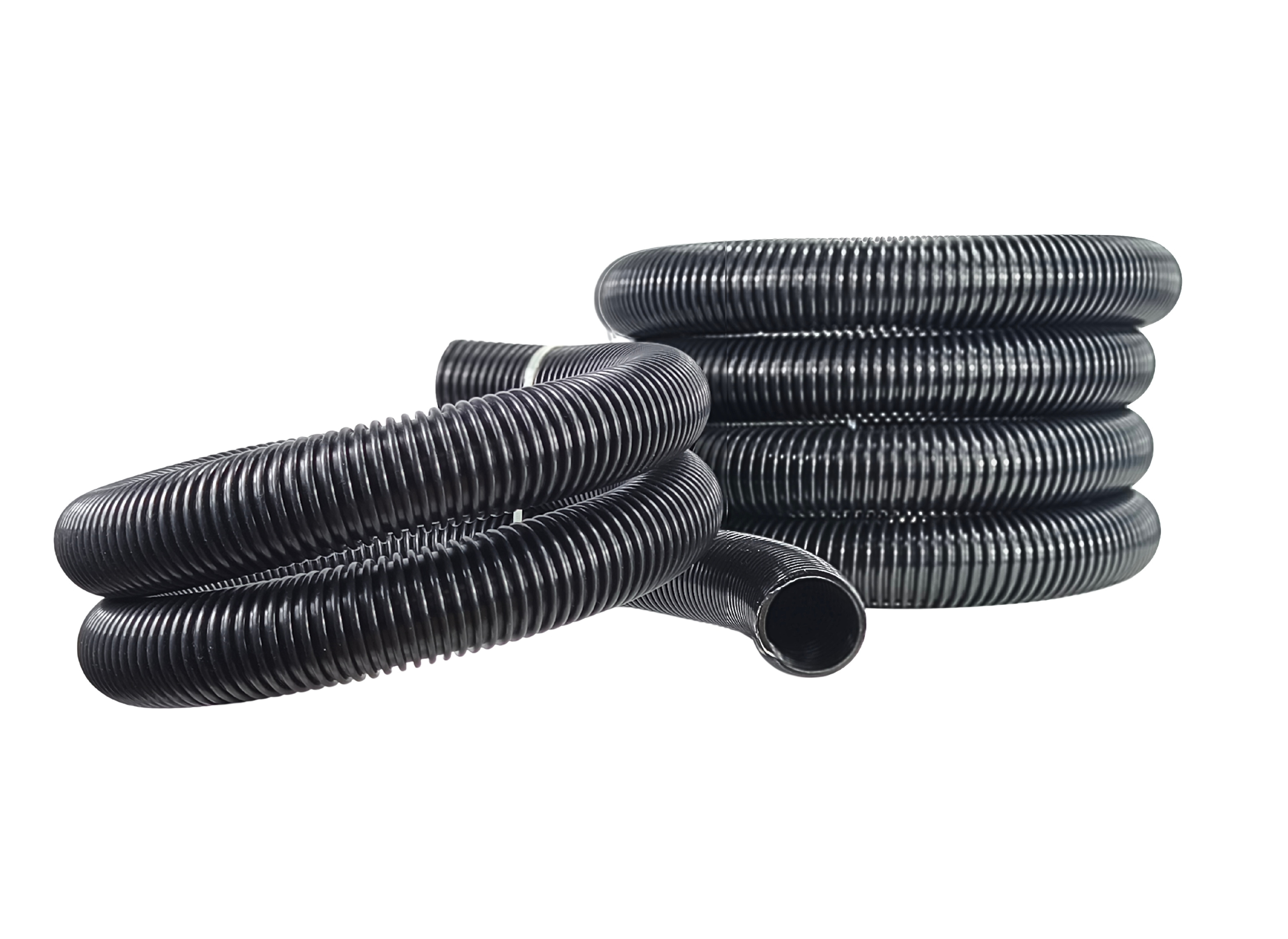

    Luftschläuche Seitenkanalverdichter WDH-SV58

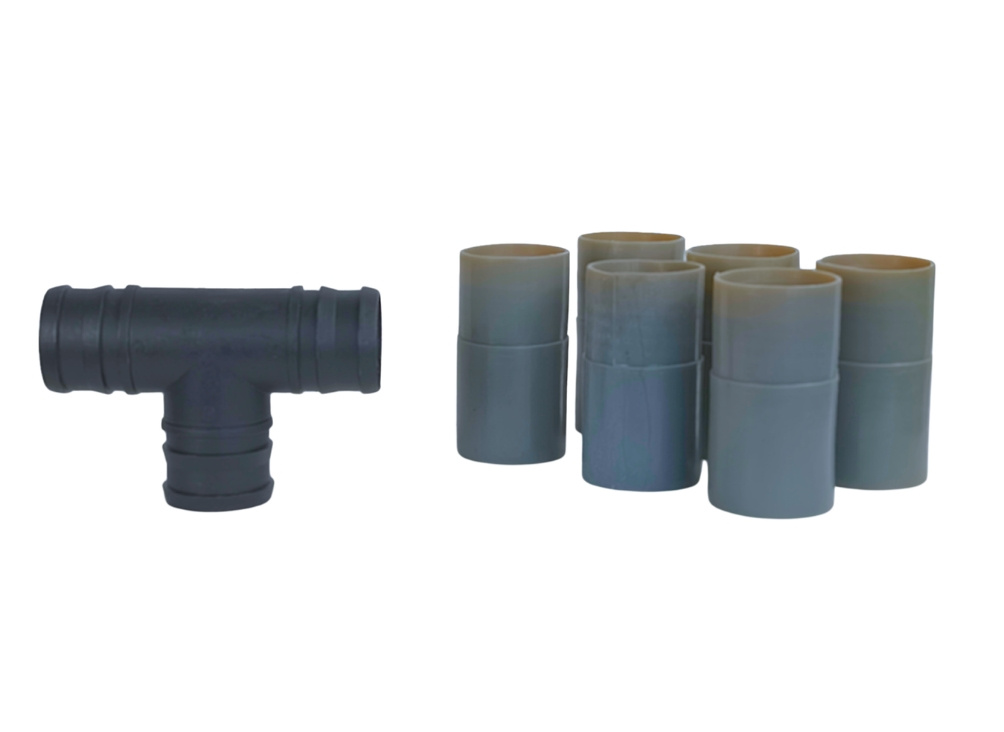

    T-Stück und Anschlussstücke Seitenkanalverdichter WDH-SV58

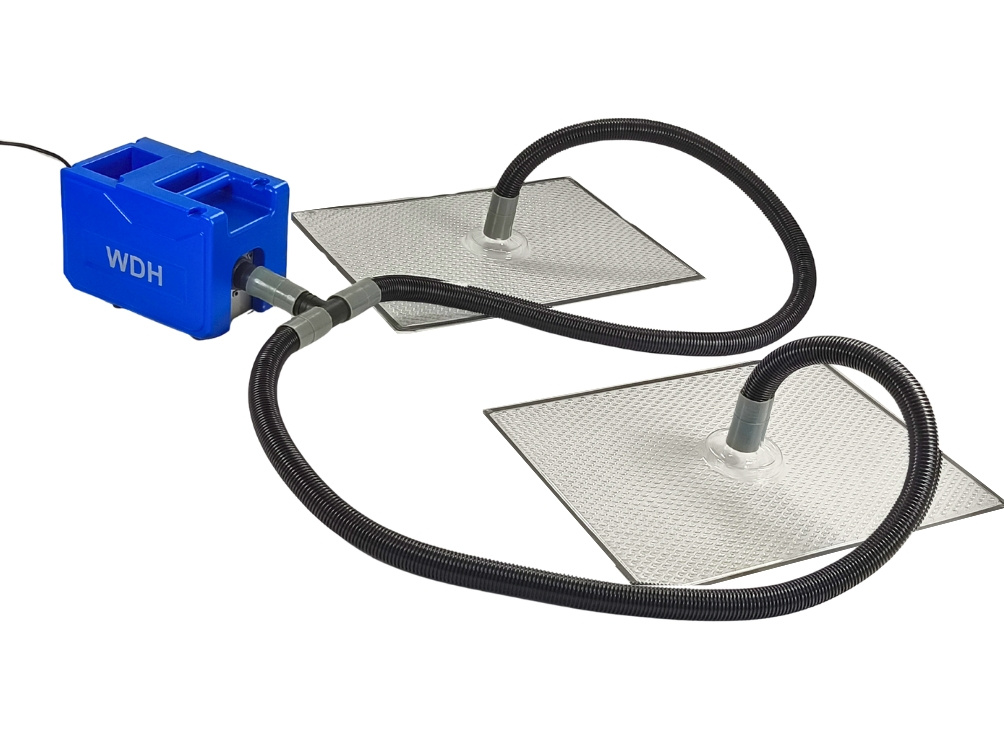

    Seitenkanalverdichter WDH-SV58+Starter Set_USE
